P3 analogue Gauge analogue boost (yellow/purple/black - dedicated plug for analogue boost sensor) *boost tap not included

analogue input 1 (brown wire - can read any 0-5 volt linear output sensor)
analogue input 2 (blue wire - can read any 0-5 volt linear output sensor)
Battery voltage (red wire / black wire - read through power and ground wires)
optional auto-dim feature (green wire - connect to any circuit that gets power only when the headlamps are on and enable feature in the configuration menu for the display to auto-dim when the headlamps are on)

This gauge IS NOT plug and play like the OBD2 gauges.
Boost/vacuum hose to the engine is required and wiring needs to be completed for power, ground, and optional analogue inputs.

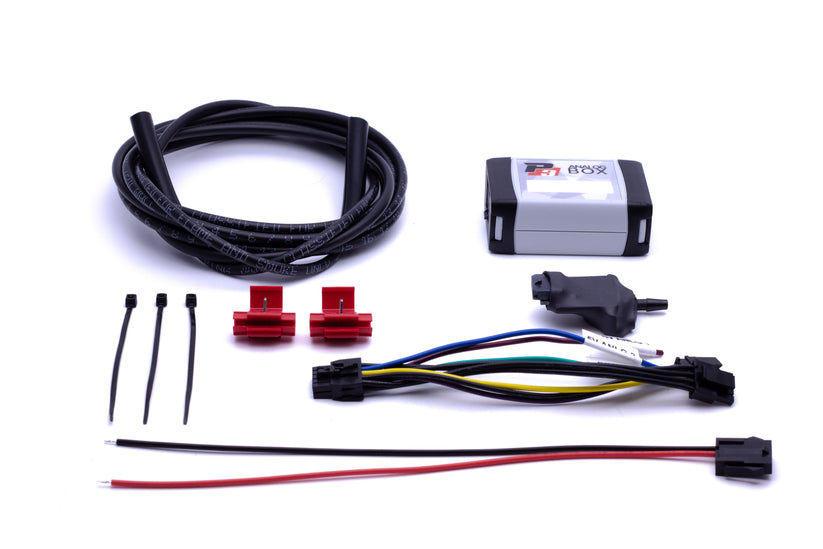

Kit Contents
Integrated display analogue
Box control unit Main harness
Hard-wire harness analogue boost sensor *boost tap not included
Approximately 5' of 5/32"
O.D. boost tubing with 5/32"
I.D. hose at each end
3 zip ties
2 scotchlok wire taps
